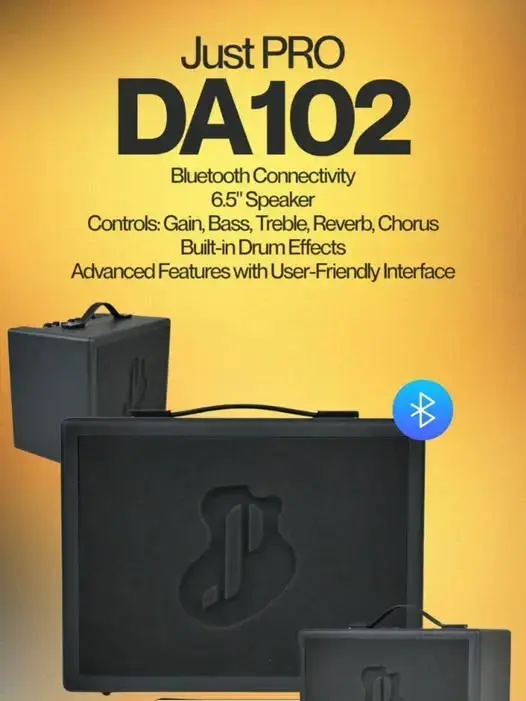

Description:

Connects a 6.35 mm input audio source

MASTER: Adjusts the total volume

GAIN: Switches between A/B/C gain functions

A: Clean tone

B: Overdrive indication

C: Distortion indication

MODE: Press for 3 seconds to toggle the drum adjustment function

Type: Selects from 20 drum effects

Tempo: Sets drum speed (0-220)

Beat: Adjusts the measure

Volume: Drum volume (V0-V32)

BASS: Adjusts bass levels

TREBLE: Adjusts treble levels

REVERB: Adjusts reverberation for F-ROOM in the first channel

CHORUS: Adjusts the chorus effect in the first channel

SELECT: Switches channel mode

PHONES: Headphone jack

AUX/REC: Connects to audio output

Bluetooth Control:

Hold for 5 seconds to enable/disable Bluetooth

LED flashes when Bluetooth is enabled and paired

Hold button for 3 seconds to exit Bluetooth mode

DC Input: Uses a 9V3A power supply

BLUETOOTH: LED indicator for Bluetooth connection

RHYTHM: Percussion display

Version: V5.0

Frequency Range: 2.402GHz - 2.480GHz

Connection Distance: Up to 10 meters (straight line)

Support System: Compatible with Android, iOS, and Windows

Transmission Power: Class 2, maximum 4 dBm

Speaker: 6.5-inch full-frequency speaker

Speaker Impedance: 4Ω

Sensitivity: 110 dB (+3dB)

Frequency Response: 20Hz - 20kHz

Distortion Degree: < 1%

Rated Power: 15W

Audio Signal-to-Noise Ratio: > 90 dB
